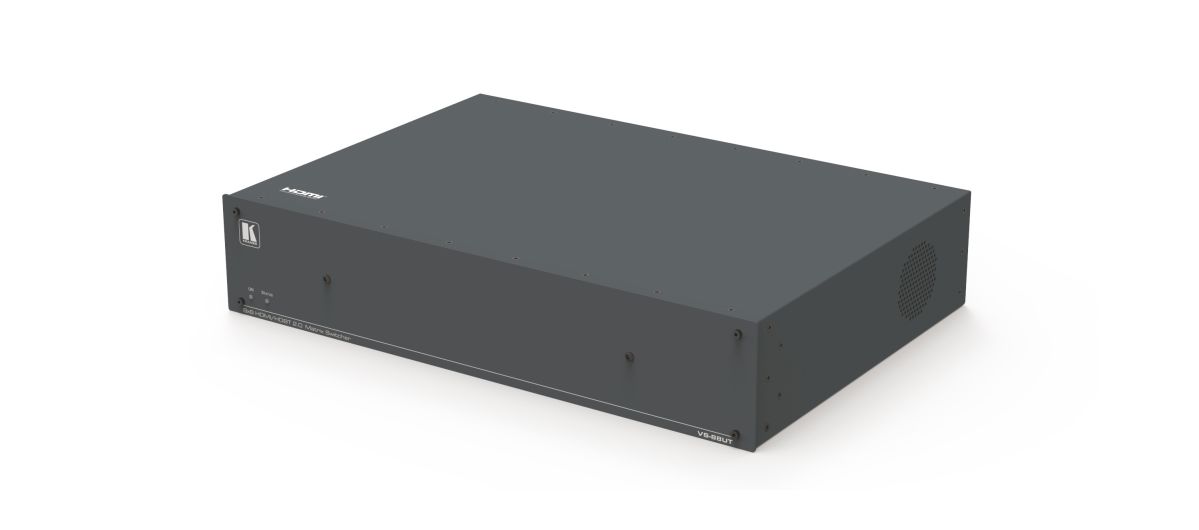

KRAMER Präsentationssystem VS-88UT/220V

VS-88UT ist ein All-in-One 4K @60 Hz (4:2:0) Audio-Video-Präsentationssystem mit integrierter Reichweitenerweiterung und einem integrierten Steuerungssystem. Das Gerät schaltet das Video um, bettet das Audio ein und gibt das Signal sowohl an einen HDMI- als auch an einen HDBaseT 2.0 mit USB-Verlängerung und PoE an den HDBaseT-Ausgangsports aus. Hervorragende Audiounterstützung umfasst symmetrisches Stereo-Audio, unsymmetrisches Stereo-Audio und ausgekoppelte Audioquellen, die an eingebettetes Audio, symmetrisches Stereo-Audio sowie einen leistungsverstärkten Audioausgang ausgegeben werden. VS-88UT enthält einen Master-Raum-Controller, der über Ethernet (LAN) mit Steuerports arbeiten kann, die Folgendes umfassen: ein bidirektionales RS-485-, vier RS-232-, vier IR-, vier GPI/O- und acht Relais zur Steuerung einer Vielzahl von AV-Geräten. Es enthält eine KNET(TM)-Steckverbinderschnittstelle, die den Zugriff auf den Master-Controller von Nebenraum-Controllern wie Steuertastenfeldern aus ermöglicht. Das Gerät kann auch Nebenraumregler über die KNET(TM)-Anschlüsse mit Strom versorgen. VS-88UT enthält ein Ethernet-Gateway zur Steuerung und Verwaltung von Remote-I/O-Ports. - Versatile All in One Solution - Provides a high performance AV presentation matrix, powerful HDBaseT signal extender and fully featured, programmable master room controller in one unit. - High Performance, Professional AV Matrix - Switches 6 4K@60Hz (4:2:0) HDMI inputs and 2 HDBaseT 2.0 signals to 2 4K@60Hz (4:2:0) HDMI outputs and 2 HDBaseT 2.0 signals at up to 10.2Gbps (3.4Gbps per graphics channel) data rate. Signals are HDCP and DVI compliant with Deep Color, 3D, and 7.1 PCM. Includes active source & acceptor detection, auto switching and auto scanning of inputs, and a non volatile memory that retains the last configuration, after switching the power off and then on again. - Flexible Audio Extraction, Embedding and Control Options - Includes 4 balanced stereo or 8 microphone audio inputs (selectable), 4 unbalanced stereo inputs, 2 line out balanced stereo audio outputs and one audio amplified output. Features audio volume control, audio breakaway and AFV (audio follow video) operation support. Global mute for both video and audio outputs enables smooth integration of the audio system with a public announcement audio system in case of an emergency event. - Powerful HDBaseT Extender - Extends signals up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), and up to 180m (590ft) at ultra mode and full HD (1080p @60Hz 24bpp). Featuring Kramer reKlocking(TM) and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables. - Programmable Master Room Controller - Connect multiple peripheral devices and control them using intuitive embedded web pages. Schedule actions and macros to automate device control. - Multi Client IP - Simultaneous IP control communication with up to 15 IP control clients. - Diverse and Abundant Control Port Formats - Includes USB 1.1 & USB 2.0 (up to 127Mbps) via 2 USB type A and 2 USB type B ports, 6 IR Ports, 1 Ethernet port, 1 1G Ethernet port for HDBaseT tunneling, 1 K NET(TM) connector
1 RS 485 and 2 RS 232 bidirectional control ports, 4 IR emitter control ports, 4 GPI/O control ports, and 8 relay control ports. - IP Port Extension and Control - Ethernet port connects to control gateways for I/O port extending, and operating IP controlled devices - Provides Power and Control in a Single Connection - HDBaseT outputs provide PoE (Power over Ethernet) to compatible devices. K NET(TM) connector carries power along with control communication to either a master room controller or auxiliary control keypad. - Control Volume, Sensors, Locks, and Lighting - Using 4 general purpose (GPI/O) control ports configured as digital input, digital output or analog input interface. - Control Screens, Drapes, Shades, Blinds and IR sensors - Using 8 contact closure ports. - Compatibility with Kramer Software Solutions - Kramer Network Compatible:Remote control and management over customer IP network. Kramer K Config(TM) Compatible:Windows based control program with easy configuration and upload to a room controller over customer IP network. - Advanced EDID Management per Input. - - Convenient Unit Control and Maintenance Options - User friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS 232 serial commands transmitted by a PC, touch screen system or other serial controller. Firmware Upgrade over Ethernet via a user friendly software upgrade tool. - Easy Installation - 19 enclosure for rack mounting a unit in a 2U rack space with included rack ears and universal 100 240V AC power connection.
