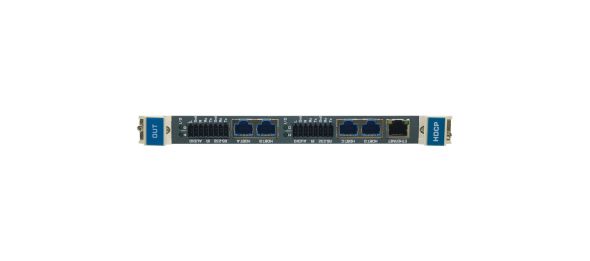

KRAMER 4K HDBaseT Ausgangskarte DTAXR-OUT4-F32/STAND
Art.Nr.: 809248
Lieferzeit: 7-14 Arbeitstage
4K HDBaseT Ausgangskarte DTAXR-OUT4-F32/STAND
Hersteller: KRAMER
Hersteller-Art.Nr.: 20-70010198
EAN: 7291063085483
Zolltarif: 85176200
DTAxr-OUT4-F32 ist eine Vierkanal-HDMI-, Analogaudio-, bidirektionale RS-232-, Ethernet- und IR-über-HDBaseT-Twisted-Pair-Übertragerkarte für die modularen Multiformat-Digital-Kreuzschienen der VS-3232-Serie. DTAxr-OUT4-F32 gibt vier Extended Reach HDBaseT-Signale mit analogem Audio, bidirektionalem RS-232, IR und Ethernet vom Chassis auf die Leitung aus. - Max. Datenrate - 6,75 GBit/s (2,25 GBit/s je Grafikkanal). - HDBaseT-Technologie - HDTV-kompatibel, HDCP-konform. - 3D-Durchleitung. - - System-Reichweite - 130 m im Normalmodus
180 m im Ultra-Modus (1080p @60 Hz @24 bpp). - Max. Resolution - 4K@60Hz (4:2:0). - Analog Audio Embedding/De¿embedding - On the same jack. - Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control. - Bidirectional RS¿232 Extension - Serial interface data flows in both directions, allowing data transmission and device control. - Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
