STAHL Befehlsgerätesystem 130740
Art.Nr.: 860816
Lieferzeit: 7-14 Arbeitstage
Befehlsgerätesystem 130740
Hersteller: STAHL
Hersteller-Art.Nr.: 130740
EAN: 4046827081415
Ursprung: Deutschland
Zolltarif: 85371098

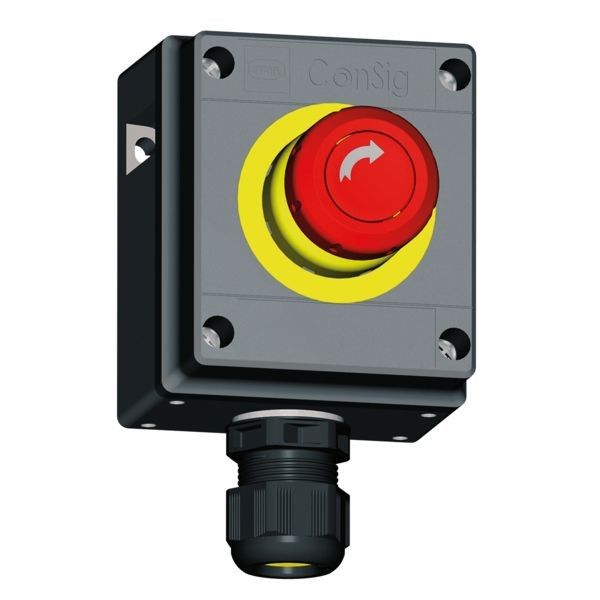

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The 3 combinable design sizes and the modular structure offer flexibility. You can choose from one standard version and customised variants. Control device system, ConSig 8040 series, explosion-protected, Type : 8040/1170X-10L07SA01, AC rated operational voltage : 550 V, Rated operational current : 10 A, Enclosure material : Polyester resin, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db, min. ambient temperature : -60 °C, max. ambient temperature : +60 °C, Degree of protection (IP) : IP66, Centre installation position : EM-STOP mushroom stay-put but., Red ¿ (rotating arrow), Centre built-in element : Contact element, Centre switching arrangement : NC, Bottom cable entry : 1 x M20 Ø 6 to 13 mm, Flange and plates : Without flange, without plates, For further information, see : r-stahl.com WebCode 8040B
Merkmale: | |
Anzahl der Befehlsstellen | 1 |
Anzahl der Pilztaster | 1 |
Geeignet für NOT-AUS | ja |
Bemessungssteuerspeisespannung Us bei AC 50 Hz | 0..500 V |
Bemessungssteuerspeisespannung Us bei AC 60 Hz | 0..500 V |
Bemessungssteuerspeisespannung Us bei DC | 0..110 V |
Farbe des Gehäuseoberteils | grau |
Werkstoff des Gehäuses | Kunststoff |
Anzahl der Kontakte als Öffner | 1 |
Schutzart (IP) | IP66 |
Schutzart (NEMA) | 4X |
