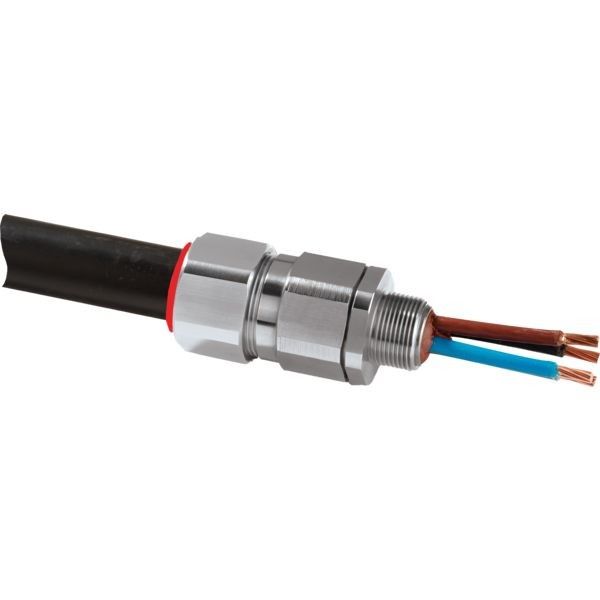

STAHL CMP Kabelverschraubung 109431

PX2K series metal Ex d and Ex e barrier cable entries are suitable for all types of armoured cables, i.e. for SWA, braid- and tape-type steel and aluminium armouring. They are equipped with a compound barrier. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested. Cable gland with compound, explosion-protected, Type : CMP-40-PX2K, Manufacturer part number : 40PX2K1RA5, Thread size : M40x1,5, Thread length : 15 mm, Material : Nickel-plated brass, Version : 40, Clamping range : 27,9 ... 40,4 mm, Width across flats : 55.00, Armouring type : All armouring, Without lead sheath, Inner sheath : 30 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db IIC Gb, II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +85 °C, For further information, see : r-stahl.com WebCode PX2KA
