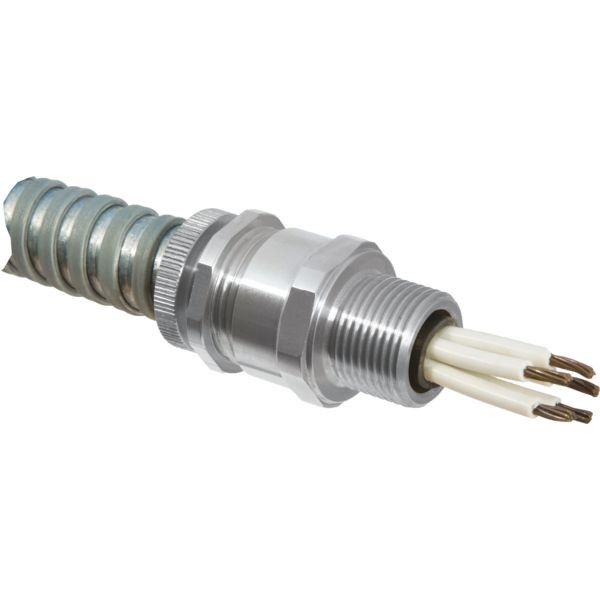

STAHL CMP Kabelverschraubung 243614

A2FFC series metal Ex d and Ex e cable entries are designed for all types of unarmoured cables and cables with wire-braid armouring that are run through flexible or rigid conduits, including those with a rubber coating. A thread adaptor is also required for connecting to rigid conduits. The cable entries are designed to prevent cold flow. Cable gland, explosion-protected, Type : CMP-25-A2FFC, Manufacturer part number : 25A2FFC1RA5C115, Thread size : M25x1,5, Thread length : 15 mm, Material : Nickel-plated brass, Version : 25, Clamping range : 11,1 ... 20 mm, Width across flats : 36.00, Armouring type : Unarmoured cable types, Cable with protective braiding, Inner sheath : 11,1 ... 20 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db IIC Gb, II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode A2FFCA
