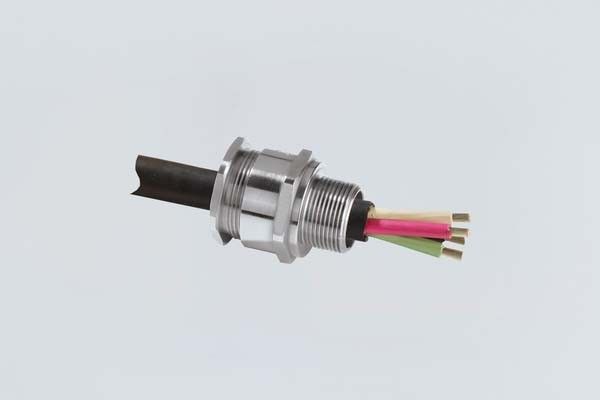

STAHL CMP Kabelverschraubung 246264

A2F series metal Ex d and Ex e cable entries are designed for unarmoured cables and cables with wire-braid armouring. The flood seal with integral protection and sealing for the outer cable sheath provided by an explosion-protected displacement seal ensure added safety. And because they are designed to prevent cold flow, safety is improved even further. They have worldwide certification according to IECEx, ATEX and CSA. Cable gland - -, explosion-protected, Type : CMP-63S-A2F-2, Manufacturer part number : 63SA2F1RA536, Thread size : NPT2, Thread length : 26,9 mm, Material : Nickel-plated brass, Version : 63S, Clamping range : 1x 41,5 ... 49,9 mm, Width across flats : 70.50, Armouring type : Unarmoured cable types, Cable with protective braiding, 0 0 mm, Inner sheath : 41,5 ... 49,9 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db IIC Gb, II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode A2FA
