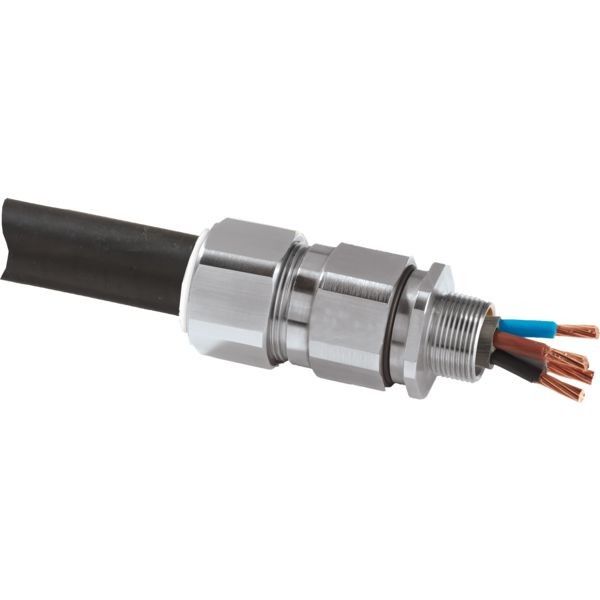

STAHL CMP Kabelverschraubung 246313
Art.Nr.: 861374
Lieferzeit: 7-14 Arbeitstage
CMP Kabelverschraubung 246313
Hersteller: STAHL
Hersteller-Art.Nr.: 246313
EAN: 4046827074707
Ursprung: Großbritannien
Zolltarif: 74198090
C2K series metal Ex e cable glands are suitable for all types of armoured cables, i.e. for SWA, braid- and tape-type steel and aluminium armouring. They feature a multifunctional holder for the armouring and various seals. They are also EMC-tested. Cable gland, explosion-protected, Type : CMP-25S-C2K-3/4, Manufacturer part number : 25SC2K1RA532, Thread size : NPT3/4, Thread length : 20,2 mm, Material : Nickel-plated brass, Version : 25s, Clamping range : 14 ... 22 mm, Width across flats : 37.50, Armouring type : All armouring, Without lead sheath, Inner sheath : 20 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode C2KA
Merkmale: | |
Gewindeart | NPT |
Gewindenennmaß in Zoll NPT/Gasrohrgewinde | 3/4 Zoll |
Gewindelänge | 20,2 mm |
Schlüsselweite | 37,5 mm |
Sechskant Eckmaß | 41,3 mm |
Geeignet für Kabeldurchmesser | 14..22 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -60..130 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 20, 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | ja |
Geschirmt | ja |
