STAHL CMP Kabelverschraubung 246393
Art.Nr.: 861388
Lieferzeit: 7-14 Arbeitstage

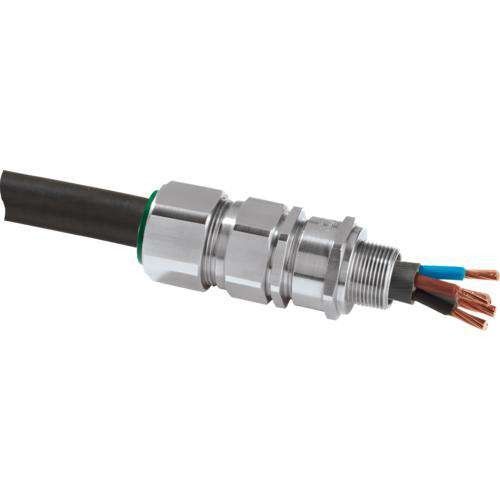

CMP Kabelverschraubung 246393
Hersteller: STAHL
Hersteller-Art.Nr.: 246393
EAN: 4046827074530
Ursprung: Großbritannien
Zolltarif: 74198090
E1FX series metal Ex d and Ex e cable entries are suitable for the following special types of armoured cables: braid-type steel and aluminium armouring. They feature a special holder for the armouring and various seals. They are also designed to prevent cold flow and are EMC-tested. Cable gland, explosion-protected, Type : CMP-75S-E1FX, Manufacturer part number : 75SE1FX1RA5, Thread size : M75x1,5, Thread length : 15 mm, Material : Nickel-plated brass, Version : 75S, Clamping range : 59 ... 72 mm, Width across flats : 90.00, Armouring type : Wire braid cable, Without lead sheath, Inner sheath : 52,8 ... 61,9 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db IIC Gb, II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode E1FXA
Merkmale: | |
Gewindeart | metrisch |
Gewindenennmaß metrisch/PG | 75 |
Gewindenennmaß in Zoll NPT/Gasrohrgewinde | sonstige |
Gewindesteigung | 1,5 mm |
Gewindelänge | 15 mm |
Schlüsselweite | 90 mm |
Sechskant Eckmaß | 99 mm |
Geeignet für Kabeldurchmesser | 59..72 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -60..130 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 20, 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | ja |
Geschirmt | ja |
