STAHL CMP Kabelverschraubung 246442
Art.Nr.: 861406
Lieferzeit: 7-14 Arbeitstage

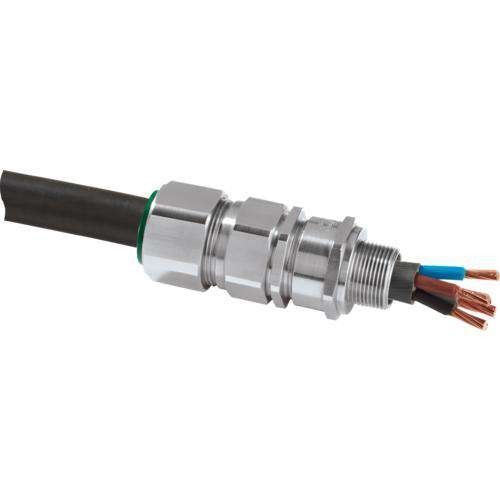

CMP Kabelverschraubung 246442
Hersteller: STAHL
Hersteller-Art.Nr.: 246442
EAN: 4046827074349
Ursprung: Großbritannien
Zolltarif: 74198090
E1FW series metal Ex d and Ex e cable entries are suitable for the following specific types of armoured cables: SWA and tape-type steel and aluminium armouring. They feature a special holder for the armouring and various seals. They are also designed to prevent cold flow and are EMC-tested. Cable gland, explosion-protected, Type : CMP-32-E1FW-1, Manufacturer part number : 32E1FW1RA533, Thread size : NPT1, Thread length : 25 mm, Material : Nickel-plated brass, Version : 32, Clamping range : 23,7 ... 33,9 mm, Width across flats : 46.00, Armouring type : Single-wire armouring, Without lead sheath, Armour wire thickness : 1,6 ... 2 mm, Inner sheath : 17 ... 26,2 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db IIC Gb, II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode E1FWA
Merkmale: | |
Gewindeart | NPT |
Gewindenennmaß in Zoll NPT/Gasrohrgewinde | 1 Zoll |
Gewindelänge | 25 mm |
Schlüsselweite | 46 mm |
Sechskant Eckmaß | 50,6 mm |
Geeignet für Kabeldurchmesser | 23,7..33,9 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -60..130 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 20, 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | ja |
Geschirmt | ja |
