STAHL CMP Kabelverschraubung 254316
Art.Nr.: 861564
Lieferzeit: 7-14 Arbeitstage

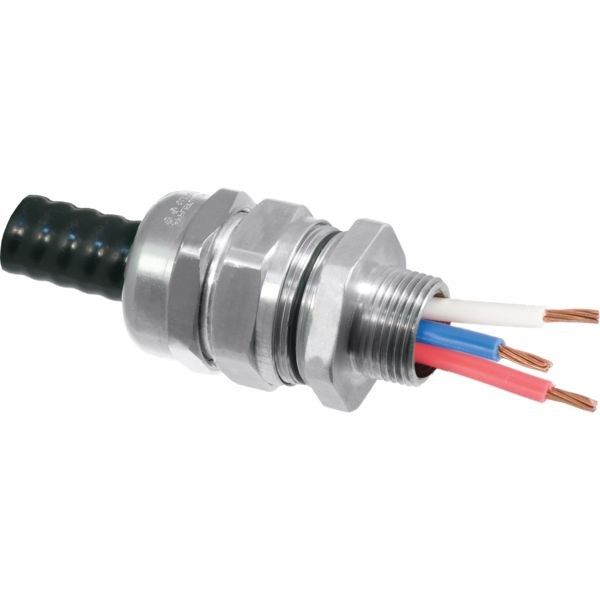

CMP Kabelverschraubung 254316
Hersteller: STAHL
Hersteller-Art.Nr.: 254316
EAN: 4046827072222
Ursprung: Großbritannien
Zolltarif: 74198090
The cable glands have a sequential design and, therefore, do not need to be dismantled for installation. A360° rotary spring establishes secure earthing. They have worldwide certification according to UL, cCSAus, IECEx and ATEX. Cable gland, explosion-protected, Type : CMP-050STMC, Manufacturer part number : CMPTMC050SNB1AA531, Thread size : NPT1/2, Thread length : 19,8 mm, Material : Nickel-plated brass, Version : 050s, Clamping range : 8,7 ... 12,7 mm, Width across flats : 30.50, Armouring type : TECK armoured cables, Inner sheath : 8,7 ... 12,7 mm, Application range (zones) : 1 , 2 , 20 , 21, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex eb IIC Gb, Dust explosion protection : II 1 D Ex ta IIIC Da, min. ambient temperature : -60 °C, max. ambient temperature : +110 °C, For further information, see : r-stahl.com WebCode TCMA
Merkmale: | |
Gewindeart | NPT |
Gewindenennmaß in Zoll NPT/Gasrohrgewinde | 1/2 Zoll |
Gewindelänge | 19,8 mm |
Schlüsselweite | 30,5 mm |
Sechskant Eckmaß | 33,6 mm |
Geeignet für Kabeldurchmesser | 8,7..12,7 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -60..110 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 20, 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | ja |
Geschirmt | ja |
