STAHL EExi-Klemmenkasten 8146/2S71-C1301
Art.Nr.: 859480
Lieferzeit: 7-14 Arbeitstage
EExi-Klemmenkasten 8146/2S71-C1301
Hersteller: STAHL
Hersteller-Art.Nr.: 136298
EAN: 4046827035159
Ursprung: Deutschland
Zolltarif: 85369095

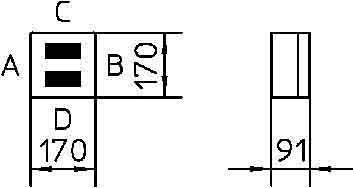

R. STAHL Series 8146 terminal boxes, made of high-quality, glass fibre-reinforced polyester resin, are ideal for use in harsh operating conditions. With eight basic sizes in various heights, they are universally usable. If requested by the customer, they are equipped with series terminals up to 300 mm² and, as an option, a flange on several enclosure sides is possible. Ex i terminal box -, explosion-protected, Type : 8146/2S71 -C1301, AC rated operational voltage : 60 V, Connection cross-section : 2,5 mm2, Enclosure material : Polyester resin, Glass fibre reinforced, Enclosure colour : Dark grey, Dimensions (W x H x D) : 340,5 x 170 x 91 mm, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection :, II 2 G Ex ia ib, Ambient temperature °C : -20 .... +55 °C, Silicone-free : No, 38 Pcs WAGO 280 3-conductor, 2.5 mm2, blue, 0 - -, - -, 0 - -, 0 - -, 0 PE rail -, 0 Equipotential bonding rail -, 1 Pcs Mounting rail 35 x 301 mm, 16 Pcs Nickel-plated brass cab. gland EMSKE-L, M20 Ø 6 ... 13 mm, 1 Pcs Nickel-plated brass cab. gland EMSKE-L, M40 Ø 16 ... 28 mm, 0 - -, -, 0 - -, -, 0 -, -, 0 - -, -, Brass plate, For further information, see : r-stahl.com WebCode 8146P
Merkmale: | |
Anzahl der Anschlussklemmen | 38 |
Max. Leiterquerschnitt | 2,5 mm² |
Länge | 170 mm |
Breite | 340,5 mm |
Tiefe | 91 mm |
Montageart | Aufputz |
Anbaumöglichkeit | nein |
Anzahl der Einführungen | 17 |
Art der Einführung | Verschraubung |
Werkstoff | Kunststoff |
Halogenfrei | nein |
Oberflächenschutz | unbehandelt |
Farbe | grau |
Schutzart (IP) | IP66 |
Schutzart (NEMA) | 4X |
Mit Deckel | ja |
Deckelbefestigung | geschraubt |
Mit transparentem Deckel | nein |
Plombierbar | nein |
Bemessungsisolationsspannung Ui | 60 V |
Funktionserhalt | ohne |
Einsatztemperatur | -20..55 °C |
Schlagfestigkeit | IK10 |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 21, 22 |
