STAHL Ex-Schaltelement für 8003 8003/111
Art.Nr.: 1000435
Lieferzeit: 7-14 Arbeitstage
Ex-Schaltelement für 8003 8003/111
Hersteller: STAHL
Hersteller-Art.Nr.: 127158
EAN: 4046827005046
Ursprung: Deutschland
Zolltarif: 85365080

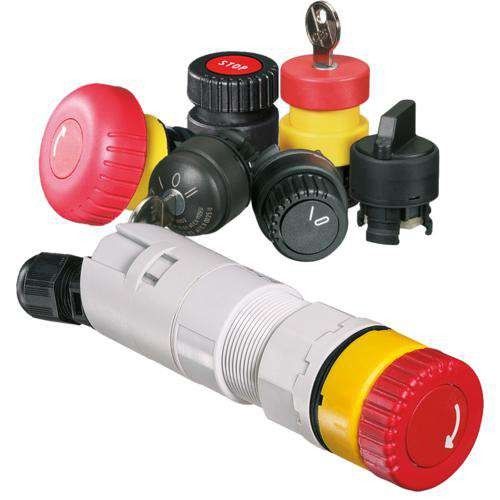

The switches and control buttons for R. STAHL series 8003 panel mounting devices have various switching functions in latching and spring return versions, which can be subsequently recoded, up to 6 A. They are completely certified, explosion-protected equipment with Ex e connection chambers. With the patented mounting mechanism, panel mounting with normal drilled holes of 30.5 mm is quick and easy. The right actuators are available for a comprehensive range of applications. Befehlsgeräte, explosion-protected, Type : 8003/111 UL, AC rated operational voltage : 500 V, Rated operational current : 6 A, Number of NCs : 1, Number of NOs : 1, Actuator : -, Enclosure material : Polyamide, Contact material : Silver-nickel, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db, Scope of validity : European Union (ATEX), CEC, IECEx, NEC, IP degree of prot. (IEC 60529): Reverse side IP65, min. ambient temperature : -20 °C, max. ambient temperature : +60 °C, Service life, min. : 10^5 operating cycles, For further information, see : r-stahl.com WebCode 8003A
Merkmale: | |
Anzahl der Schaltstellungen | 2 |
Geeignet für Beleuchtung | nein |
Mit Leuchtmittel | nein |
Farbe des Knopfes | sonstige |
Lochdurchmesser | 30,5 mm |
Breite der Öffnung | 38 mm |
Höhe der Öffnung | 18 mm |
Schutzart (IP) | IP65 |
Schutzart (NEMA) | 4X |
Versorgungsspannung | 0..500 V |
Anzahl der Kontakte als Schließer | 1 |
Anzahl der Kontakte als Öffner | 1 |
Ausführung des elektrischen Anschlusses | Federzuganschluss |
Mit Frontring | ja |
Werkstoff des Frontrings | Kunststoff |
Farbe Frontring | schwarz |
