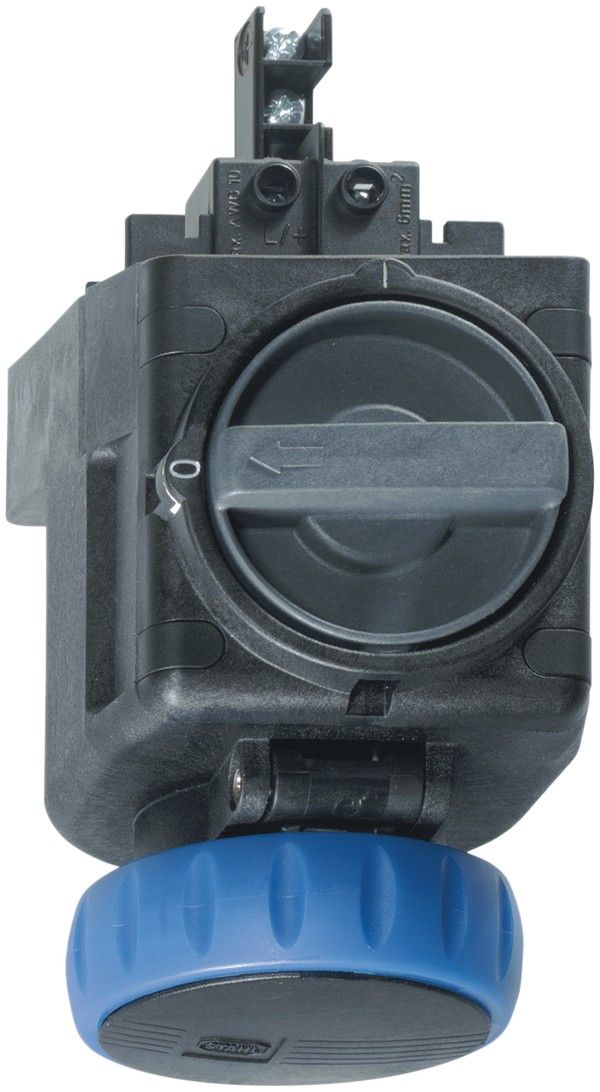

STAHL Flanschsteckdose 150577

The Zone 1 flange sockets in the 3-, 4- and 5-pole version enable full AC-3 switching capacity with currents up to 16 A. The large switch knob is designed for use with work gloves too and provides a clear position indication.Thanks to the compact structure, the flange socket can be integrated into nearly all enclosures and, with the internal locking device, provides a fast and safe connection of devices. Flange socket, Explosion-protected, Type : 8570/15-306, AC rated operational voltage : 250 V, Frequency range : 50 - 60 Hz, Detailed number of poles : 3 P (2 P + PE), Colour code : Blue, Coding (clock hour position) : 6, Auxiliary contacts available : No, Enclosure material : Polyamide, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC T80 °C Db, Min. ambient temperature : -30 °C, Max. ambient temperature : +55 °C, Rated operational current : 16 A, Degree of protection (IP) : IP66, Entries : -, Cable gland : -, Stopping plug : -, For further information, see : r-stahl.com WebCode 8570D
