STAHL Kabelverschraubung 259995
Art.Nr.: 861646
Lieferzeit: 7-14 Arbeitstage

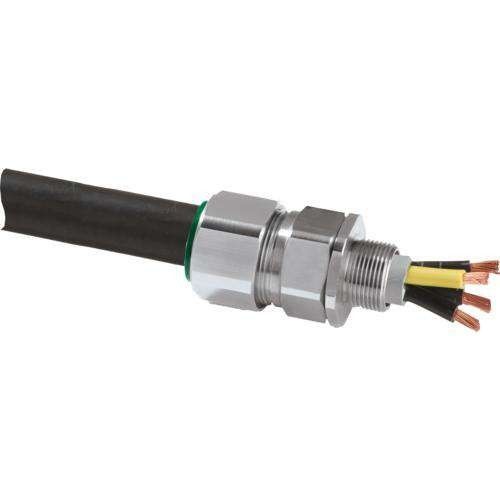

Kabelverschraubung 259995
Hersteller: STAHL
Hersteller-Art.Nr.: 259995
EAN: 4046827070976
Ursprung: Großbritannien
Zolltarif: 74198090
CW series metal cable entries are suitable for the following types of armoured cables: SWA and tape-type steel and aluminium armouring. They feature a special holder for the armouring and various seals. Cable gland Industrial design, Type : CMP-25-CW, Manufacturer part number : 25CW1RA5, Thread size : M25x1,5, Thread length : 15 mm, Material : Nickel-plated brass, Version : 25, Clamping range : 18,2 ... 26,2 mm, Width across flats : 37.50, Armouring type : Single-wire armouring, Without lead sheath, Armour wire thickness : 1,25 ... 1,6 mm, ... 20 mm, Degree of protection (IP) : IP66, min. ambient temperature : -60 °C, max. ambient temperature : +130 °C, For further information, see : r-stahl.com WebCode CWA
Merkmale: | |
Gewindeart | metrisch |
Gewindenennmaß metrisch/PG | 25 |
Gewindesteigung | 1,5 mm |
Gewindelänge | 15 mm |
Schlüsselweite | 37,5 mm |
Sechskant Eckmaß | 41,3 mm |
Geeignet für Kabeldurchmesser | 18,2..26,2 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -60..130 °C |
Explosionsgeprüfte Ausführung | nein |
Für Ex-Zone Gas | ohne |
Für Ex-Zone Staub | ohne |
Für bewehrte Kabel | ja |
EMV-Ausführung | ja |
Geschirmt | ja |
