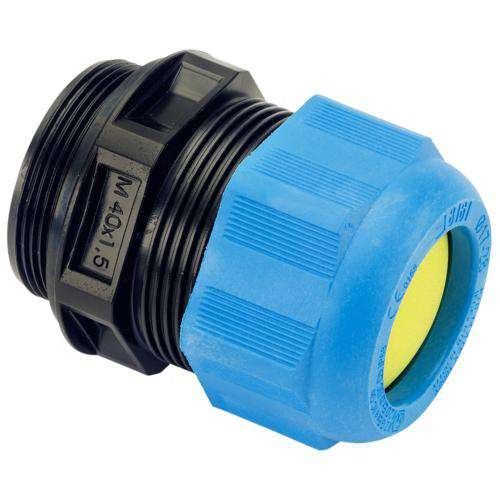

STAHL Kabelverschraubung 265084

R. STAHL's 8161/7 and 8161/8 series cable entries can be used to safely run cables into Ex e enclosures. They are suitable for cables between 1 to 48 mm in diameter. They are available for Ex e and Ex i circuits ¿ the Ex i version can be distinguished by its blue cap nut. A stopping plug can be integrated to seal any cable entries that are not being used. Cable gland With MFD insert Black, explosion-protected, Type : 8161/8-M25-9999-MFD-04035, Thread size : M25x1,5 mm, Thread length : 10 mm, Material : Polyamide, Colour : Blue, Version : Multiple seal, with plug, Clamping range : 4x 3,2 ... 3,5 mm, Width across flats : 29.00, Armouring type : Unarmoured cable types, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Lot size : 50 Pcs, Gas explosion protection : II 2 G Ex eb IIC Gb, Dust explosion protection : II 2 D Ex tb IIIC Db, min. ambient temperature : -40 °C, max. ambient temperature : +75 °C, For further information, see : r-stahl.com WebCode 8161B
