STAHL Kabelverschraubung 265089
Art.Nr.: 861690
Lieferzeit: 7-14 Arbeitstage

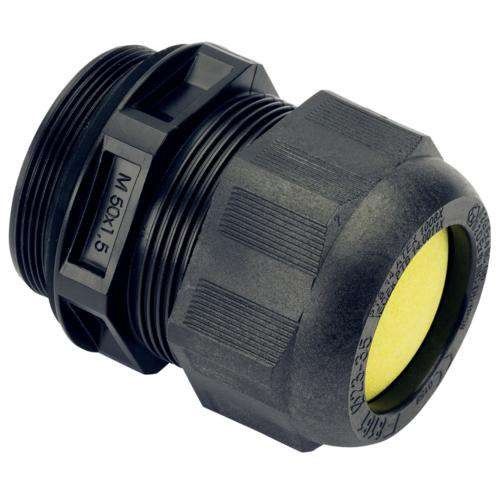

Kabelverschraubung 265089
Hersteller: STAHL
Hersteller-Art.Nr.: 265089
EAN: 4046827082894
Ursprung: Deutschland
Zolltarif: 39269097
R. STAHL's 8161/7 and 8161/8 series cable entries can be used to safely run cables into Ex e enclosures. They are suitable for cables between 1 to 48 mm in diameter. They are available for Ex e and Ex i circuits ¿ the Ex i version can be distinguished by its blue cap nut. A stopping plug can be integrated to seal any cable entries that are not being used. Cable gland With MFD insert Red, explosion-protected, Type : 8161/7-M32-9999-MFD-04050, Thread size : M32x1,5 mm, Thread length : 12 mm, Material : Polyamide, Colour : Black, Version : Multiple seal, with plug, Clamping range : 4x 4,5 ... 5 mm, Width across flats : 36.00, Armouring type : Unarmoured cable types, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Lot size : 25 Pcs, Gas explosion protection : II 2 G Ex eb IIC Gb, Dust explosion protection : II 2 D Ex tb IIIC Db, min. ambient temperature : -40 °C, max. ambient temperature : +75 °C, For further information, see : r-stahl.com WebCode 8161B
Merkmale: | |
Gewindeart | metrisch |
Gewindenennmaß metrisch/PG | 32 |
Gewindenennmaß in Zoll NPT/Gasrohrgewinde | sonstige |
Gewindesteigung | 1,5 mm |
Gewindelänge | 12 mm |
Schlüsselweite | 36 mm |
Sechskant Eckmaß | 40 mm |
Geeignet für Kabeldurchmesser | 4,5..5 mm |
Werkstoff | Kunststoff |
Werkstoffgüte | Polyamid (PA) |
Oberflächenschutz | unbehandelt |
Halogenfrei | ja |
Glasfaserverstärkt | ja |
Schutzart (IP) | IP66 |
Schlagfest | ja |
Farbe | schwarz |
RAL-Nummer | 9004 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -40..75 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | nein |
Geschirmt | nein |
