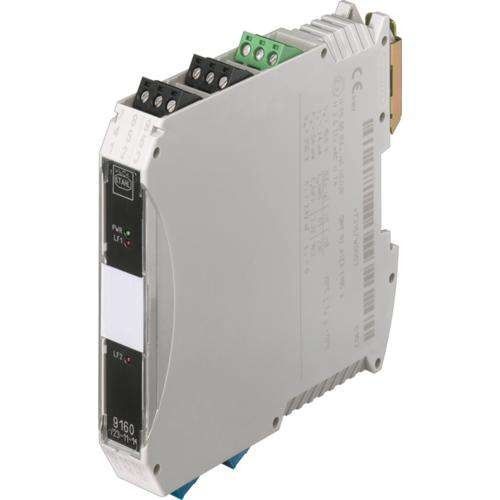

STAHL Messumformerspeisegerät 214904

9160 series transmitter supply units can be used for the intrinsically safe operation of two- and three-wire transmitters or intrinsically safe mA sources such as four-wire transmitters. The unit allows HART signals to be transmitted in both directions. The portfolio includes single- and dual-channel units and a version for signal duplication. Special versions are available for higher output voltages and SIL 3. Transmitter supply unit, Ex i field circuit, explosion-protected, Type : 9160/23-10-10k, Max. voltage Uo : 27 V, Max. current Io : 88 mA, Max. power Po : 576 mW, Max. voltage Ui : 30 V, Max. current Ii : 100 mA, Nominal current : 100 mA, Power consumption : 2,3 W, Number of channels : 2, Connection type : Spring clamp terminal, Input : 0/4 to 20 mA with HART, Output A : Passive, LFD relay : No, SIL : 2, min. ambient temperature : -20 °C, max. ambient temperature : +70 °C, Application range (zones) : 2, Gas explosion protection : II 3 (1) G Ex nA [ia Ga] IIC T4 Gc, Dust explosion protection : II (1) D [Ex ia Da], For further information, see : r-stahl.com WebCode 9160A
