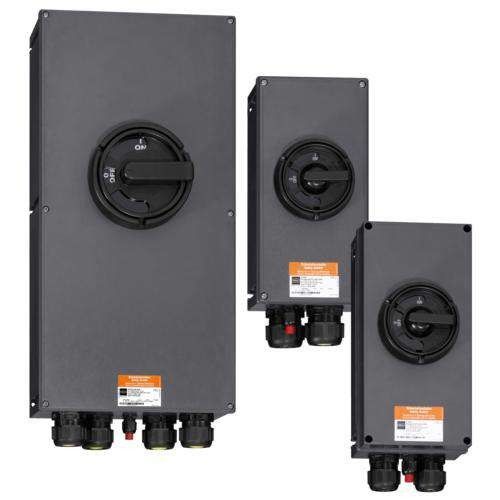

STAHL Sicherheitsschalter 213477

R. STAHL's 8146/5-V37 series safety switches safely disconnect the power supply to machinery and system components for cleaning and repair as prescribed. All of the installed load disconnect switches have an AC-3 switching capacity. The switches can be locked in the 0-position using padlocks. Safety switch - 180 A, explosion-protected, Type : 8146/5-V37-310-51-1010-K, Spare of type : 8537/2-308-5001-K, -, AC rated operational voltage : 400 V, Rated operational current : 180 A, Enclosure material : Polyester resin Glass fibre reinforced, Detailed number of poles : 3-pole, Auxiliary contact NC : 1 NC, Auxiliary contact NO : 1 NO/delayed, Additional terminal : -, Application range (zones) : 1 , 2 , 21 , 22, Gas explosion protection : II 2 G Ex db eb IIC T4 Gb, Dust explosion protection : II 2 D Ex tb IIIC T130 °C Db, Special conditions for extended ambient temperature,, see operating instructions:, Min. extended ambient temp. : -40 °C, Max. extended ambient temp. : +50 °C, Degree of protection (IP) : IP66, Handle colour : Yellow shroud, red handle, Cable gland : 2 x M63 Ø 28 ... 48 mm, 1 x M20 Ø 4 ... 13 mm, Additional device : -, -, -, Aux. cont. conn. cross-section: 0,75 2,5 mm2 Finely stranded, ... 0 mm2, For further information, see : r-stahl.com WebCode 8146L
