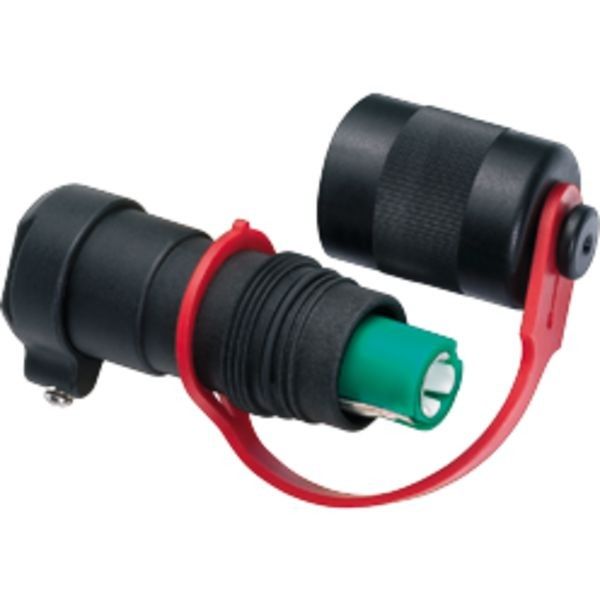

STAHL Steckverbinder miniCLIX 154056

R.STAHL Series 8591/1 and 8591/4 4-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 250 V/10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Coupling, explosion-protected, Type : 8591/431-10-0002, AC rated operational voltage : 230 250 V, DC rated operational voltage : 0 V, Frequency Hz (for AC) : 50/60, Detailed number of poles : 4 P + PE, Coding (clock hour position) : 10, Recommended colour ring coding: Blue, Enclosure material : Plastic, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC 60 °C Db, min. ambient temperature : -55 °C, max. ambient temperature : +40 °C, Locking device present : No, Connection type : 1.5 mm2 crimp, For further information, see : r-stahl.com WebCode 8591A
