STAHL Strommesser 8403C6-15-2
Art.Nr.: 890796
Lieferzeit: 7-14 Arbeitstage

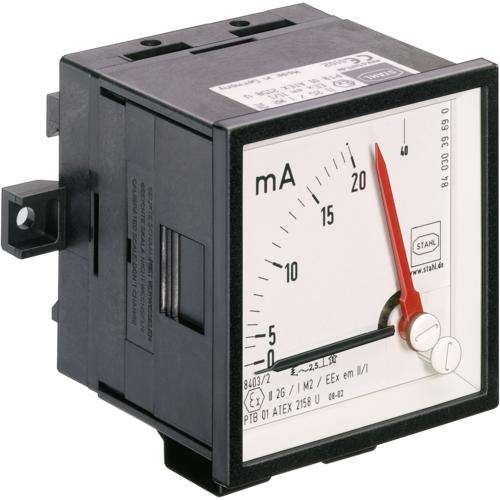

Strommesser 8403C6-15-2
Hersteller: STAHL
Hersteller-Art.Nr.: 262738
EAN: 4046827070648
Ursprung: Slowenien
Zolltarif: 90303370
R. STAHL Series 8403C6 ammeters are installed in Ex e type of protection enclosures. They provide measured values for circuits which can be quickly compared with the desired values via a red pointer affixed on the outside. The devices work with a moving iron movement with accuracy class 2.5. Moving iron ammeter Direct measuring, explosion-protected, Type : 8403C6-15-2, Movement : 0 to 15 A, Scale : 0 to 15/30 A, Rated insulation voltage : 690 V, Frequency : 50/60 Hz AC, DC, Overload scale : 2x, Overload capacity : 50 x IN 1 sec, Power dissipation : 0,67 VAM, Accuracy class : 2,5, Terminal cross-section : 4 ... 10 mm2 Solid, 4 ... 6 mm2 Finely stranded, Dimensions (W x H x D) : 72 x 71,2 x 72 mm, Enclosure material : Polycarbonate, Application range (zones) : 1 , 2, Degree of protection (IP) : IP54, Terminal degree of prot. (IP) : IP20, Gas explosion protection : II 2 G Ex eb mb IIC, For further information, see : r-stahl.com WebCode 8403B
Merkmale: | |
Nominaler Endwert der Skala | 15 A |
Messbereich | 0..15 A |
Wandleranschluss | nein |
Genauigkeitsklasse | 2,5 |
Verlustleistung | 0,67 W |
Spannungsart | AC/DC |
Überstromskala | ja |
Geeicht | nein |
Ausführung | DIN-Schiene |
Geeignet für Reiheneinbau | ja |
Breite | 72 mm |
Höhe | 71,2 mm |
Max. Zeigerausschlag | 45 ° |
Messsystem | Weicheisen |
Schleppzeiger | nein |
Skalenbeleuchtung | nein |
