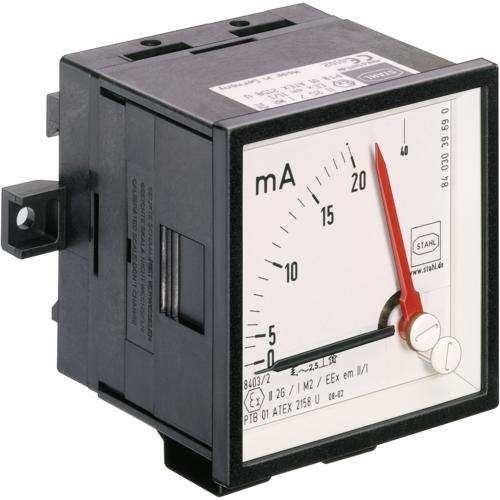

STAHL Strommesser 8403C6-1T-2

R. STAHL Series 8403C6 ammeters are installed in Ex e type of protection enclosures. They provide measured values for circuits which can be quickly compared with the desired values via a red pointer affixed on the outside. The devices work with a moving iron movement with accuracy class 2.5. Moving iron ammeter For transducer, explosion-protected, Type : 8403C6-1T-2, Movement : 0 to 1 A, Scale : without, Rated insulation voltage : 690 V, Frequency : 50/60 Hz AC, DC, Overload scale : 2x, Overload capacity : 50 x IN 1 sec, Power dissipation : 0,67 VAM, Accuracy class : 2,5, Terminal cross-section : 2,5 ... 10 mm2 Solid, 2,5 ... 6 mm2 Finely stranded, Dimensions (W x H x D) : 72 x 71,2 x 72 mm, Enclosure material : Polycarbonate, Application range (zones) : 1 , 2, Degree of protection (IP) : IP54, Terminal degree of prot. (IP) : IP20, Gas explosion protection : II 2 G Ex eb IIC, For further information, see : r-stahl.com WebCode 8403B
