STAHL Wiska Kabelverschraubung 223370
Art.Nr.: 861132
Lieferzeit: 7-14 Arbeitstage

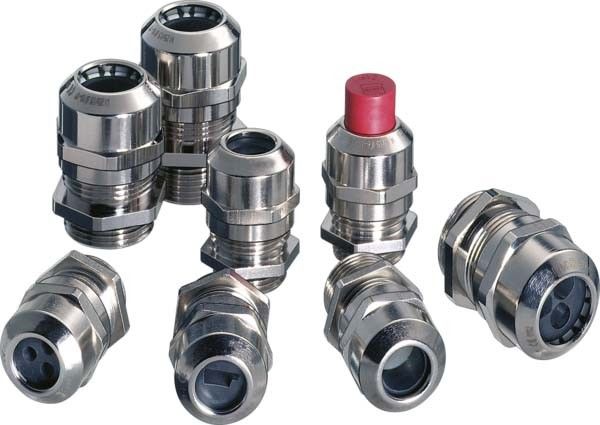

Wiska Kabelverschraubung 223370
Hersteller: STAHL
Hersteller-Art.Nr.: 223370
EAN: 4046827077333
Ursprung: Deutschland
Zolltarif: 85369010
The cable glands Series EMSKE are certified for use in "
increased safety"
type enclosures. An advantage is the same construction to 8161. This means, that only one assembly tool is needed whether using a brass or plastic gland. Furthermore there is no difference or reduction in the clamping range between brass and plastic version. For application in areas in which the EMC is important the brass cable gland is available with an earthing cone. Cable gland, explosion-protected, Type : EMSKE 63 EMV-Z, Manufacturer part number : 10065929, Thread size : M63x1,5, Thread length : 15 mm, Material : Nickel-plated brass, Version : EMC insert, With earth contacts, Clamping range : 34 ... 48 mm, Width across flats : SW68, Armouring type : Shielded conductor, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP68, Gas explosion protection : II 2 G Ex e IIC Gb, Dust explosion protection : II 2 D Ex tb IIIC Db, min. ambient temperature : -40 °C, max. ambient temperature : +75 °C, For further information, see : r-stahl.com WebCode EMSKEA
Merkmale: | |
Gewindeart | metrisch |
Gewindenennmaß metrisch/PG | 63 |
Gewindesteigung | 1,5 mm |
Gewindelänge | 15 mm |
Schlüsselweite | 68 mm |
Sechskant Eckmaß | 78,52 mm |
Geeignet für Kabeldurchmesser | 34..48 mm |
Werkstoff | Metall |
Werkstoffgüte | Messing |
Oberflächenschutz | vernickelt |
Halogenfrei | ja |
Glasfaserverstärkt | nein |
Schutzart (IP) | IP68 |
Schlagfest | ja |
Farbe | sonstige |
RAL-Nummer | 9006 |
Biegeschutz | nein |
Mit Gegenmutter | nein |
In Öffnung einrastend | nein |
Ausführung | gerade |
Mehrfach Dichteinsatz | nein |
Flachkabelverschraubung | nein |
Mit Zugentlastung | nein |
Art der Dichtung | Dichtring |
Teilbare Verschraubung | ja |
Einsatztemperatur | -40..75 °C |
Explosionsgeprüfte Ausführung | ja |
Für Ex-Zone Gas | 1, 2 |
Für Ex-Zone Staub | 21, 22 |
Für bewehrte Kabel | nein |
EMV-Ausführung | ja |
Geschirmt | ja |
