STAHL Stecker 126371
Art.Nr.: 860782
Lieferzeit: 7-14 Arbeitstage

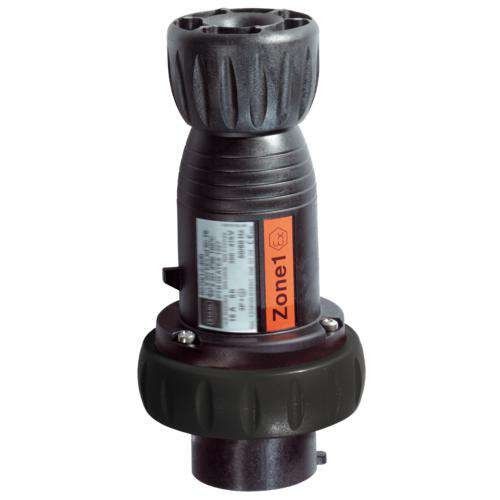

Stecker 126371
Hersteller: STAHL
Hersteller-Art.Nr.: 126371
EAN: 4046827004353
Ursprung: Deutschland
Zolltarif: 85366990
R. STAHL Series 7570/12 SolConeX plugs for Zone 2/22 are silicone-free 3-, 4- or 5-pole 16 A plugs. The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact. Plug, Explosion-protected, Type : 7570/12-407, AC rated operational voltage : 500 V, Frequency range : 50 - 60 Hz, Detailed number of poles : 4 P (3 P + PE), Colour code : Black, Coding (clock hour position) : 7, Auxiliary contacts available : No, Enclosure material : Polyamide, Application range (zones) : 2 , 22, Gas explosion protection : II 3 G Ex dc ec IIC T6 Gc, Dust explosion protection : II 3 D Ex tc IIIC T80 °C Dc, Min. ambient temperature : -30 °C, Max. ambient temperature : +55 °C, Rated operational current : 16 A, Degree of protection (IP) : IP66, Entries : -, Screw connections : -, Cable diameter : 8 ¿ 18 mm, Stopping plug : -, For further information, see : r-stahl.com WebCode 7570A
Merkmale: | |
Netzspannung | 500 V |
Nennstrom | 16 A |
Polzahl | 4 |
Spannung nach EN 60309-2 | 500 V (50+60 Hz) schwarz |
Uhrzeit-Stellung | 7 h |
Kennfarbe | schwarz |
Ausführung | Stecker |
Werkstoff des Gehäuses | Kunststoff |
Kabeleinführung | gerade |
Schutzkontakt | ja |
Für Ex-Zone Gas | 2 |
Für Ex-Zone Staub | 22 |
Ex-Klasse | IIC |
